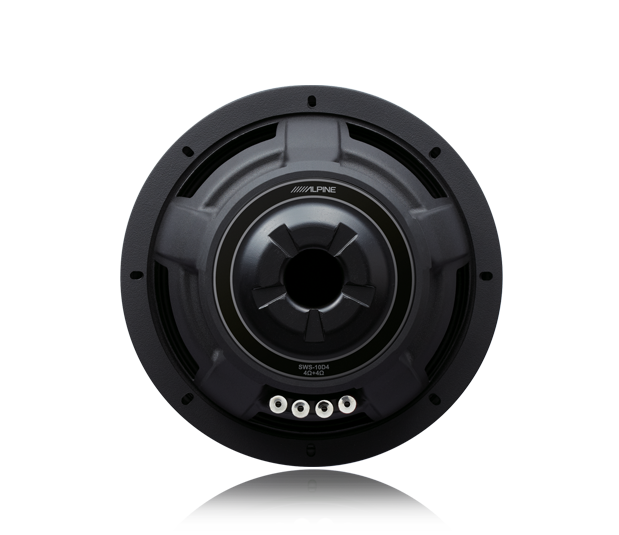

10″ 1500w (peak) S-type subwoofer
The all-new Type-S subwoofers are more durable and powerful than ever, delivering accurate ground pounding bass. With their new sleek design, they look as great as they perform.
They are ready for virtually any system type desired, and have a shallow design which allows installation even in difficult locations.
Diaphram
Material: Oversized Hairline-Textured Mica Poly Dustcap w/ Kevlar Reinforced Pulp Paper Cone Body
Design: 2-Piece Parabolic
Surround
Material: Injected Molded Santoprene
Design: High Amplitude Multi-Roll H.A.M.R Surround Design (Patent Pending)
Spider
Material: ConexA? Design: 10 Segment High-Roll Progressive Design
Voice Coil
Material: 180A High Temp Wire on Spiral-Cut Aluminum Bobbin Design: 5-Layer Split-Winding Dual Voice Coil
Motor Structure
Pole Geometry: FEA Optimized Underhung Design w/ Dual-Sided Compound Radius Pole Geometry
Configuration: Dual Flared Design w/ Integrated Backplate Venting
Frame
Material: 18GA High Strength Steel
Design: Alpine-Designed 5 Leg Structure w/ Integrated Radial Voice Coil Vents
Terminals
Layout: One Sided
Design: 8ga. Push Terminals
Tinsel Leads
Design: Reinforced-Layer Spider Integration
Gasket
Design: Concealed Mount Gasket System
Power Handling
Power Range: 150W – 500 Watts
RMS Power Handling: 500W
Peak Power Handling: 1500W
Dimensions
Mounting Depth: 177mm (7”)
Mounting Diameter: 347mm (13.7”)
Displacement: 0.07 cu. Ft.
Added Volume: 0.15 cu. ft. (Reverse Mount, Magnet Out)
General
Frequency Response: 24Hz – 200Hz
Recommended Enclosure Sizes
– Sealed enclosure: 17.0L
– Vented enclosure: 39.6L
